If you are sure that the index prism shaft anti-backlash spring is now working
and that you have removed all end float from that shaft, I agree the source
of your problem probably lies with the worm shaft assembly. The helical
antibacklash spring for the worm shaft is relatively weak, so if the
lubrication is no longer good, it may not be working. The assembly was never
meant to to be taken apart and, indeed, attempts to do so are likely to bend
something important. If it rotates freely and any end float upwards is
smartly returned downwards by the spring, all is well (some units were fitted
so well that no end float is detectable). If not, I suggest a little clock
oil on the bearings, encouraged by gentle warmth, until the shaft rotates and
slides freely. The assembly is dowelled to the frame, but it is just possible
that a previous explorer has damaged the dowel holes and some movement of the
whole assembly occurs, so check the three attaching screws are tight.

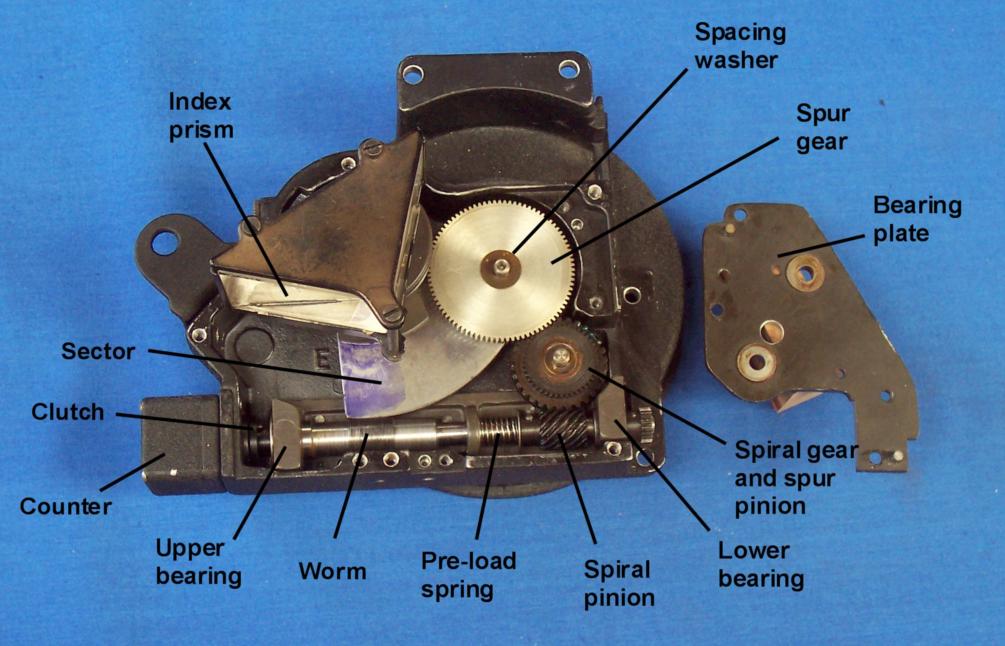

You are by now no doubt very familiar with the anatomy, but I am attaching a
picture for those who are not.

Bill Morris
Pukenui
New Zealand
