    Re: Celestial training planetarium 1950
    From: Brad Morris
    Date: 2016 Feb 14, 22:54 -0500

    Hello Frank

    You asked how big the space in the center of the dome would be, to not distort the relationship between the navigational stars.

    I won't pretend to offer you an exact number, but I can offer an interesting analog.

    I've spent a fairly large amount of time around flight simulator domes.  The smallest radius from the design eye at the center of the dome to the inside surface was 14 feet.  I was told that the eyes no longer bend inwards toward each other to focus at that displacement.  So called 'infinity focus' for the pilot was achieved.  That gave us a 28' diameter sphere.  I've also worked on 20' radius dones.

    The pilot would sit in the real cockpit of the simulated jet fighter, strapped into his normal seat, along with a closed canopy.  His head could experience the normal range of motion whilst seated there, without affecting the infinity focus.  That's still a pretty small cube of head motion, call it 1.5-2 foot sphere, centered right on the pilot's eyes.  The center of the dome and the sphere around the design eye coincide.

    These flight simulators are used to train pilots to dogfight.  Consequently, the environment and the opponents all had to observe the proper spatial relationships and, of course, proper flight dynamics.  It makes maintaining the angular relationship between 23 stars pale in comparison.

    To complete the analog then, if the end optic of the periscopic sextant were to be roughly within 1 foot of the center of that dome, it probably would have been more than sufficient for training purposes.  Unless, it were held precisely at the center, however, the star to star distance would never be accurate.

    But they weren't measuring that!! In fact, the purpose, I gather, was to familiarize the navigators with the general procedure.  No need to get highly accurate and realistic altitudes!!  What would that provide over and beyond the procedure?  A modest change in the numerical values and the resultant fix is all.  I suggest that probably wasn't critically important.

    Precision may be important in a planetarium, but I don't think that precision would be critically important here.

    Brad

    On Feb 14, 2016 8:15 PM, "Frank Reed" <NoReply_FrankReed@fer3.com> wrote:

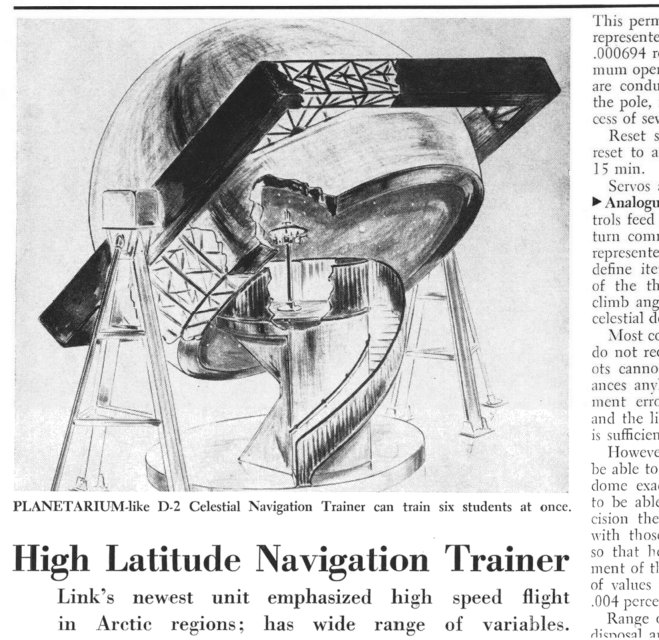

    Here's a sketch from the December 25, 1950 issue of "Aviation Week" showing Link Aviation's "D-2 High Speed, High Latitude Celestial Navigation Trainer". The drawing does not immediately convey the size of the thing until you realize that those are stairs spiralling up into the interior of the dome. This is a planetarium dome on gimbals. Its diameter, 30 feet, is comparable to the planetarium dome at the Treworgy Planetarium at Mystic Seaport, which quite a few of you have visited. This machine weighed 22 tons.

    According to the article over 500 stars were displayed including all of first and second magnitude and some third magnitude stars. The operator of the simulator could set airspeed up to 1500 knots, altitude up to 100,000 feet, latitude from 25°N to the pole [probably should be 55 N], wind velocity up to 300 knots, and air temperature from -70° F to +40° F. Up to five students could sit on a platform near the center of the dome and shoot sights using periscopic sextants. Note that the dome apparently did not work with a central projector; instead individual stars were displayed by small lights on the dome itself. And that, of course, is why the dome itself had to be mounted on gimbals.

    A planetarium can be quite useful for discussing celestial coordinates, and of course its usual traditional role, learning the constellations and displaying the daily motion of the stars, is quite valuable in a celestial navigation class. But normally a planetarium is a poor place to practice actual sextant sights. The reason for this is simple: we're too close to the dome, and an observer's exact position introduces a large parallax in the positions of the stars. It's not hard to work out. Suppose you're at the exact center of the dome (15-foot radius), and you're looking at a star 45° high. If you move six inches away from the center, how much does the altitude change? The solution for this problem applied in this Link Simulator is described in the article, if I understand it correctly. It says that "23 of the important navigational stars" are "collimated for navigational purposes". But it's not quite clear to me how this would be set up, and how would it appear when displayed? My guess is that those stars would be projected from something like slide projectors poking through the dome. Would they look right visually? This collimated projection would ensure that the stars would have the proper relative positions in some region around the center of the dome? How big would that observing area be?

    The remainder of the article is at archive.aviationweek.com, but I'm not sure if it's available without a subscription. In any case, it's under copyright, so I'm only quoting from it here --can't post the whole thing.

    Frank Reed
    ReedNavigation.com
    Conanicut Island USA
